| Nazwa marki: | TGFQ |

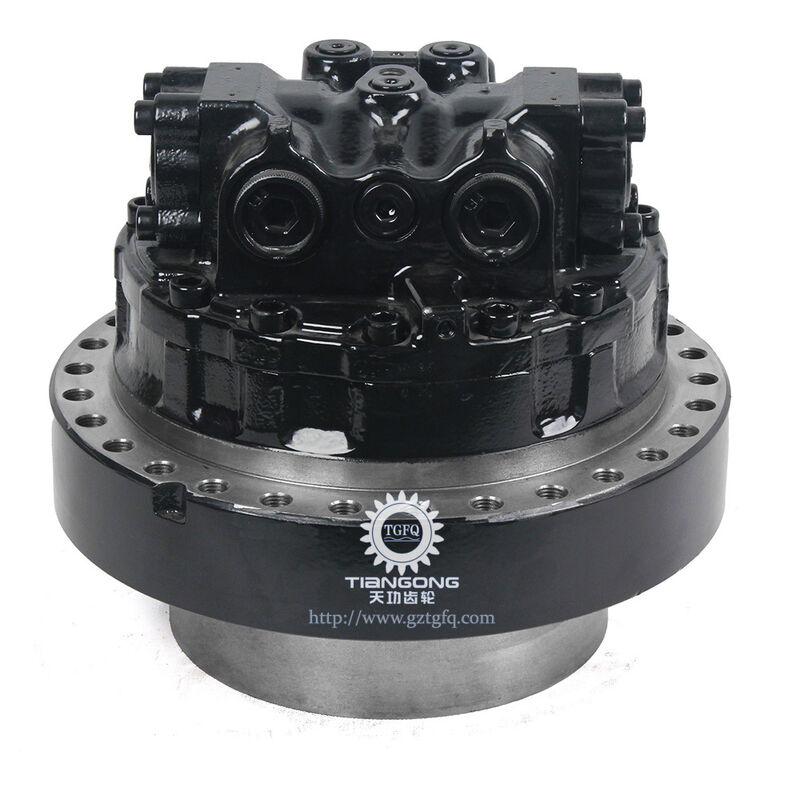

| Numer modelu: | MAG170VP-5000 |
| MOQ: | 1 |
| Cena £: | 746.00USD |
| Szczegóły opakowania: | NNER PACKING: Wrap by plastic film, clear label for each item. NNER OPAKOWANIE: Owiń folią |
| Warunki płatności: | L/C, T/T, D/P, D/A |
| Compatible Models | JS205/JS220 |
| Category | Excavator travel motor |
| Brand | TGFQ |
| Part Numbers | 20/925318/JRA0264 JRA0124 |
| Packing | Wooden Case |
| Delivery Time | 1-3 days after payment confirmation |
| Shipping Methods | By Sea, Air, or Express |
| # | Part No. | Description | Qty |
|---|---|---|---|
| 2-2B | NSP | None serviced part | 2 |
| 15 | LPM0099 | Seat, spring | 1 |
| 2-9E | LBM0104 | O Ring | 1 |
| 28 | LMM0519 | Pin | 4 |
| A | JRA0124 | Motor, track | 1 |
| 2-9F | LBM0106 | Ring, back-up | 1 |
| 2-2E | LBQ0212 | O Ring | 2 |
| 2-7K | LBM0105 | Ring, back-up | 2 |
| 2-7J | LBM0102 | O Ring | 1 |
| #### | LNM0398 | Cap, assembly | 2 |
| 2-6D | LBM0101 | O Ring; REPLACED BY LBQ0453, SAN 13121 | 1 |
| 2-9C | LPM0087 | Filter | 1 |
| 10 | LPM0063 | Ball, steel | 2 |
| 2-6E | 6004/3510 | Capscrew | 4 |
| 18 | LMM0206 | Pin | 1 |
| 9 | LZM0308 | Plate, swash | 1 |
| #### | LBQ0182 | O Ring; REPLACES LBC0031, SAN 13121 | 2 |
| 2-7G | LBQ6916 | O Ring | 1 |
| #### | LSS0023 | Seat, spring | 2 |
| 21 | LAM0023 | Seal, oil | 1 |
| 2-7R | LBB0152 | Ring, back-up | 2 |
| 27 | LZM0310 | Plate, disc; Replaces LZM0338 | 3 |
| #### | LLM0048 | Plug | 10 |
| 2-9H | LMM0524 | Ring, snap | 1 |
| #### | LSM0112 | Guide, spring | 1 |
| 16 | LSM0118 | Spring | 1 |
| 2-7Q | LBQ0152 | O Ring | 1 |
| 2-2C | NSP | None serviced part | 2 |
| 26 | LZM0228 | Plate, friction | 3 |
| 39 | LSM0120 | Spring | 2 |
| 2-2A | NSP | None serviced part | 1 |
| 29 | LSM0119 | Spring | 8 |
| 41 | LSM0121 | Spring | 8 |
| 17 | LMM0513 | Collar, thrust | 1 |
| #### | UBJ0383 | Plug | 1 |
| 37 | LLM0052 | Plug | 2 |
| 45 | LQM0029 | Kit-seal, track motor | 1 |
| 7 | LQM0027 | Plate, retainer | 1 |
| #### | LPM0094 | Valve, relief assembly | 2 |
| 34 | LLM0048 | Plug | 5 |
| 31 | LAM0059 | O Ring | 1 |
| 4 | LQM0026 | Kit-piston, assembly | 1 |
| #### | LPM0097 | Seat, spring | 2 |
| #### | LSM0117 | Spring | 1 |
| 2-2D | NSP | None serviced part | 2 |
| 2-6D | LBQ0453 | O Ring; REPLACES LBM0101, SAN 13121 | 1 |
| #### | NSP | None serviced part | 1 |
| #### | LSM0113 | Spring | 2 |
| 2-9G | LBM0107 | Ring, back-up | 1 |
| #### | NSP | None serviced part | 1 |
| 13 | KAA0081 | Bearing | 1 |
| 25 | LPM0090 | Piston, brake | 1 |
| 30 | LAM0058 | O Ring | 1 |
| #### | LLM0083 | Plug | 1 |
| 14 | LMM0525 | Ring, snap | 1 |
| 23 | LBM0056 | O Ring | 1 |
| 23 | LBQ6266 | O Ring | 1 |
| 1 | NSP | None serviced part | 1 |
| 33 | LBQ0072 | O Ring | 4 |
| 12 | LTM0188 | Bearing | 1 |
| 2 | NSP | None serviced part | 1 |
| #### | UBJ0382 | Plug; REPLACES LLM0065 | 5 |
| 36 | LBQ0182 | O Ring; REPLACES LBC0031, SAN 13121 | 2 |
| 42 | LUM0167 | Bolt | 4 |
| 19 | LMM0363 | Pin | 3 |
| 3 | LJM0073 | Shaft | 1 |
| #### | LLM0052 | Plug | 1 |
| 20 | LUM0166 | Capscrew | 13 |
| 2-9D | LBQ0062 | O Ring | 1 |
| 22 | LBQ5268 | O Ring | 1 |
| 5 | LZM0309 | Plate, valve | 1 |
